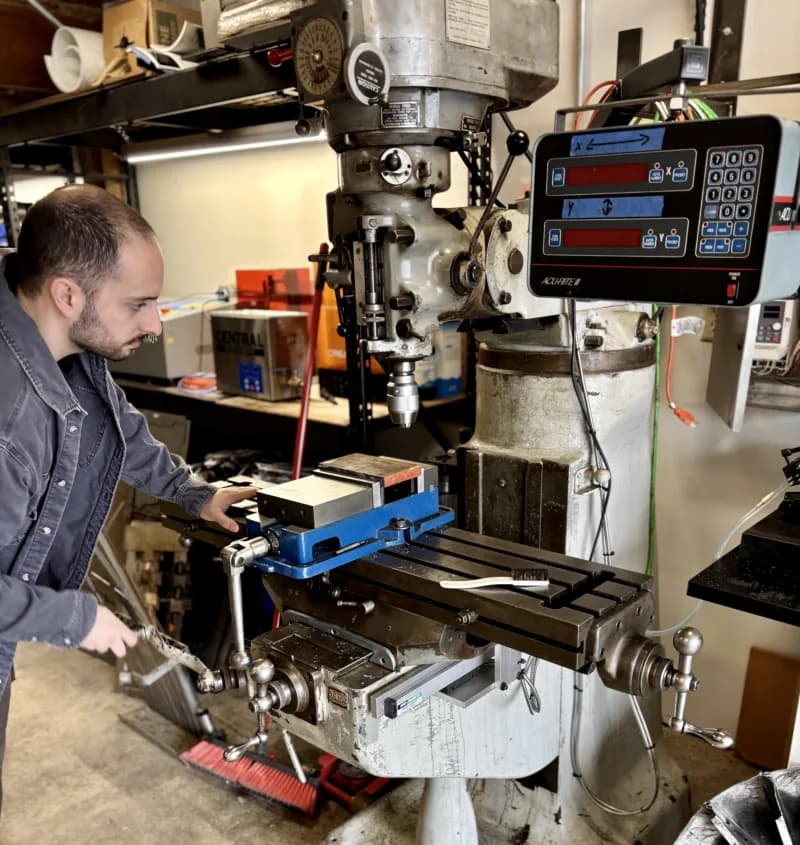

Most fabrication shops will take a job from a photo and a conversation. Some will work from a napkin sketch. Whether that is sufficient depends entirely on what the part has to do and how much tolerance there is for variation.
The practical test: if someone who was not part of the original conversation could make the correct part from the document you are providing, the documentation is sufficient. If they could not, it is not.

When a sketch and a conversation work
A simple bracket with no fit requirements, a one-time repair piece that will be fit-checked in place before final installation, a custom fixture that will be tweaked during assembly: these can sometimes be done from a rough sketch plus a phone call. The shop makes an interpretation, you review it in person, and adjustments happen before anything is committed.
This works when variation is acceptable, when fit is checked before final use, and when the person receiving the work can ask clarifying questions in real time. It breaks down in most other situations.
When you need actual dimensions
If the part has to fit a mating component, dimensions matter. A bracket that mounts to a 6" bolt circle needs that bolt circle called out to the appropriate precision. A shaft that fits a bearing needs the diameter and tolerance specified. Describing this verbally or with a sketch that is not to scale leaves the shop to guess, and guesses produce parts that do not fit.
The minimum for a dimensioned part:
- All features that control fit or function, with dimensions and tolerances
- Material specification (alloy and condition)
- Any surface finish requirements on functional surfaces
- Overall geometry sufficient to define the shape unambiguously
This does not have to be a formal drawing generated in CAD. A dimensioned hand sketch is sufficient for many straightforward parts. What matters is that the critical dimensions are written down and the shop does not have to infer them.
When you need a formal drawing
Repeat production is the clearest case. If you need ten parts now and may need ten more in six months, you need a drawing. Without one, the second batch is made from the shop's memory of the first batch, which is not a reliable reference. Dimensions drift. The shop may have changed operators. A drawing is how you get consistent parts across multiple runs.
Third-party vendors require drawings. If the part is going to a shop you have not worked with before, or to a vendor overseas, or through a purchasing process where you will not be present when questions arise, the drawing has to stand on its own. It has to answer questions that have not been asked yet.
Liability and quality documentation require drawings. In regulated industries (medical devices, aerospace, defense), the drawing is part of the quality record. It establishes what was specified. If a part fails and the question is whether it was made to spec, the drawing is the reference. A sketch and a conversation is not a quality record.
Any assembly that involves multiple parts made by different shops, or that requires parts to be interchangeable, requires drawings with tolerances that are coordinated across the assembly. This is where GD&T becomes useful: it controls the relationship between features precisely enough that parts from different vendors will assemble correctly.
When you need GD&T
GD&T (Geometric Dimensioning and Tolerancing) is a language for specifying geometric relationships between features, not just their individual dimensions. It is useful when:
- A feature's position or orientation relative to a datum matters for fit or function, and the tolerance needs to be stated precisely
- You are controlling a feature at maximum or minimum material condition (so the tolerance can be tied to actual part size)
- You need to distinguish between form, orientation, and location tolerances on the same feature
GD&T is not necessary for most simple parts. A dimensioned drawing with plus-minus tolerances covers most machining and fabrication work. GD&T adds value when the relationship between features is what matters and plus-minus tolerances on individual features do not fully capture the requirement.
Quick reference
| Situation | What you need |
|---|---|
| Simple one-off, fit checked in person | Sketch + conversation |
| Part with fit or function requirements | Dimensioned drawing (hand or CAD) |
| Repeat production, multiple runs | Formal drawing with tolerances |
| Third-party vendor, no real-time contact | Formal drawing with tolerances |
| Regulated industry (medical, aerospace) | Formal drawing, part of quality record |
| Multi-vendor assembly, interchangeable parts | Coordinated drawings, likely GD&T |
The minimum documentation is whatever it takes for the shop to make the right part without guessing. Everything above that is how you make it repeatable, scalable, and defensible.
